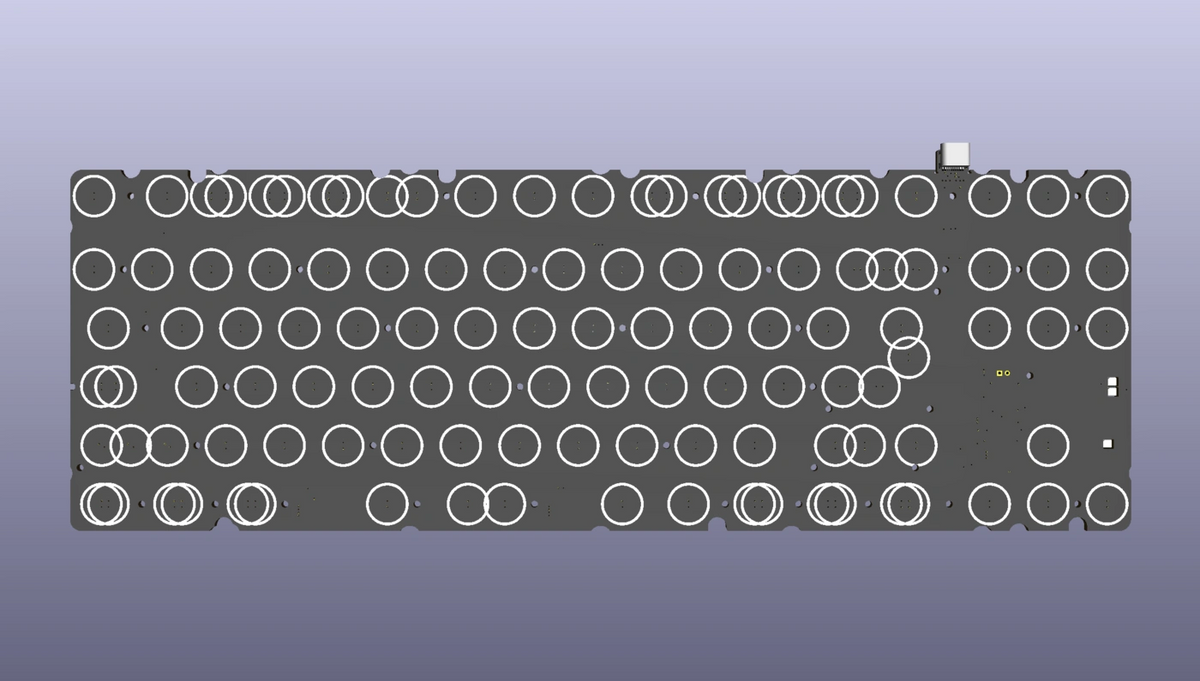

• KUSH80 EC PCB with H87/H88 layout support and USB connector
1 1

KUSH80 EC PCB | 10/24-10/31

KUSH80 EC PCB | 10/24-10/31

Prices are listed in Hongkong Dollars

Import duties are paid by Keyspensory for US order

HK$300.00
  HK$300.00
Sale Sold out
Shipping calculated at checkout.

Product Specifications

  • PCB: Yellow core, black solder mask, OSP surface finish
  • Thickness: 1.6 mm
  • Switch compatibility: EC (electrocapacitive) and MX compatible PCB, with BLE functionality
  • Supported layouts: F12 / F13, split Backspace, ISO Enter, stepped Caps Lock, split left Shift, split right Shift, 6.25U / 7U spacebar, and 3-1-3 split spacebar
  • Case / mounting compatibility: H87 / H88-style cases; supports front- and rear-mounted configurations
  • Connectors: JST, 4-pin onboard cable connection, Ayleen MX1.25 low-profile connector, and Alina JST connector
  • Default configuration: Front-facing USB port and standard JST position
  • Known compatible cases: H87 / H88, Ayleen, and others; please verify fitment for your specific case revision
  • LED positions near the arrow keys: Spyder, Ayleen, and Dyad
  • Keymapping and EC settings: VIA at config.keyspensory.store/via, including basic EC functions

Layout Supported

KUSH80 EC PCB supported keyboard layouts

Dyad Compatibility

You can fit an H87/H88-style PCB in the Dyad board. However, if you want to use the Dyad LED badge, the KUSH80 EC PCB provides the corresponding LED position.

Production & Shipping

Price: HK$300.

Estimated production lead time: approximately 1 month.

Shipping: Shipping will be billed separately when the PCB is ready to ship, or combined with your Dyad order where applicable.

Production dates are estimates and may be subject to delays.

Credits & Acknowledgements

Special thanks to Cipulot for the foundational firmware work and the early open-source contributions to the electrocapacitive keyboard community. Their willingness to share knowledge and code has been invaluable in making projects like this possible. We sincerely appreciate their work and contribution.

Warning:

Please note that this is a Group Buy. There can be delays and set backs. The timeline is only an estimate. By adding this item to your cart and purchasing you agree that you understand everything above. You will be charged immediately for this item. You will be able to modify or cancel your order during GB period, but you will not be able to do so once the GB period has been closed. Please do not purchase this item with other group buys. Only the items specified in each product picture are included with that particular product.
